The OPTOKON HC-HMA-S hybrid cable is based on Highly durable flexible cable terminated with HMA-S hybrid fiber optic Expanded Beam and copper wires connectors. It is designed for applications where there is a requirement data communication by fiber optic and at the same time is needed power supply for connected devices. Suitable for military tactical systems, FTTA applications, CCTV systems or for connections of movable devices.
The hybrid cable includes
two optical fibers suite able for high volume data transmission, high
definition video signals and other high speed communication systems. Three
copper wires of AWG 16 size might be used for power supplying of remote site,
connection of control serial interface etc. Flexible cable design allows
connection of moving devices like robots, while maintaining a reliable
connection.
Features:
• Ruggedized field design.
• MIL-DTL-38999 standard.
• Hybrid connection: 2x FO + 3x Cu wires.
• FO – Expanded Beam technology.
• High reliable flexible connection of moveable objects.
• Operating temperature: -40 to +70 °C.
Specifications:
|
Hybrid
cable |
|
||
|
Fiber |
Wire |
|
|
|
Fiber count |
2 |
Wire count |
3 |
|
Fiber Type |
G.657.A1, G.657.A2 |
Wire Stranded Tinned Copper |
AWG 16 (19x0.3 mm) |
|
Buffer diameter |
0.9 mm |
Wire Insulation material |
FEP |
|
Simplex jacket |
FR-LSHF |
Wire Insulation colour |
White, Black, Red |
|
Simplex diameter |
1.8 mm |
Wire Insulation diameter |
1.9 mm |
|
Cable outer diameter |
11.7 mm |
|
|
|
Max. loading |
8000 N short term / 3500 N long term |
|
|
|
Outer jacket: UV stable Flame-retardant TPU Outer
Jacket (V-2 acc. to UL94) |
|
||
|
Full description of hybrid cable available:
https://www.optokon.com/product/322-highly-durable-hybrid-cable |
|
||
|
|
|
||
|
Hybrid
connector HMA-S: 2x FO + 3x AWG16 FO – Expanded Beam technology |
|
|
|
|
Parameter |
|
|
|
|
Connector
tyoe |
HMA-S |
|
|
|
Insertion
loss |
SM:
1.8 dB typ. |
|
|
|
Return
loss |
SM:
> 32 dB |
|
|
|
Operating
temperature |
-40
to +85 °C |
|
|
|
Water
immersion |
up
to 15 m depth |
|
|
|
Vibration
Sinusoidal |
10-500
Hz, 3 axis 0.75 mm amplitude @ 10 g |
|
|
|
Free
fall resistance |
500
falls from 1.2 m height |
|
|
|
Shock |
11
ms, 3 axis, 50 g |
|
|
|
Tensile
Strength |
Tensile
of 1500 N, cable dependent |
|
|
Application:
- Broadcast.
- Military communications.
- Industrial.
- Petrochemical.

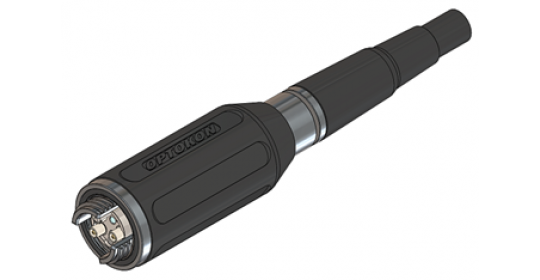

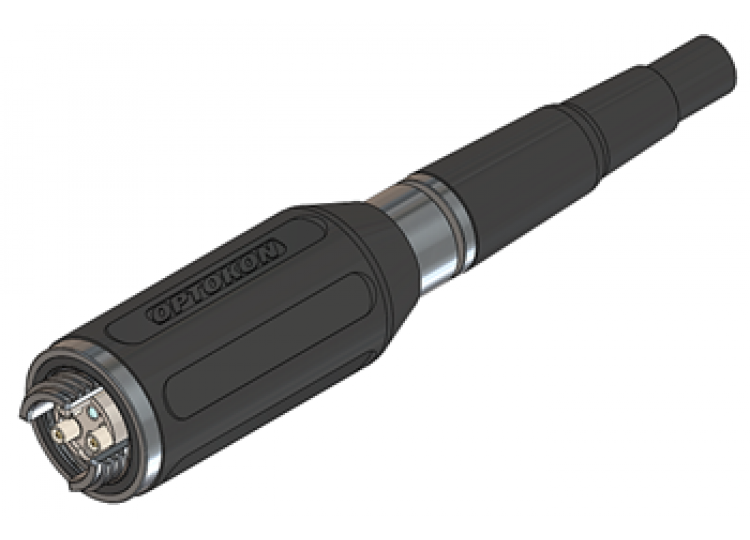

HC-HMA-S hybrid cable.
