Product
details:

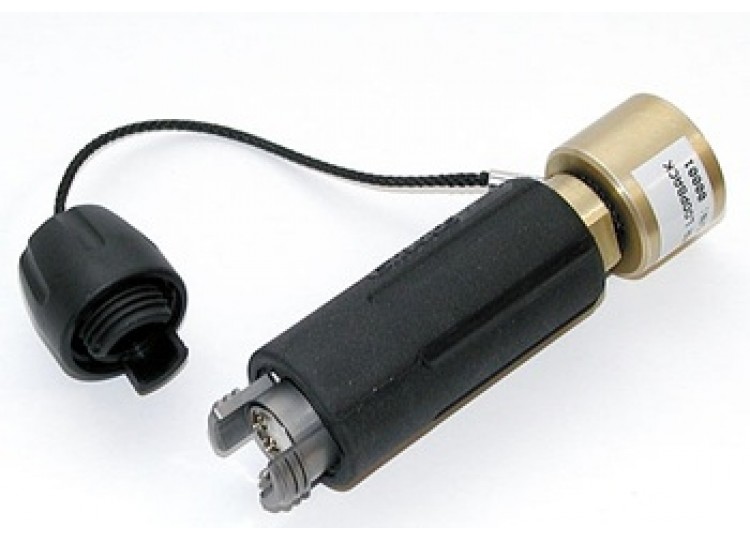

The OPTOKON HMA-J-LB Loopback based on HMA-J
style plug connector is designed for testing of optical network operating on
tactical cables terminated with ruggedized Expanded Beam connectors.
Features:
- Advanced expanded beam technology.
- MIL-DTL-83526 specification.
- Hermaphroditic interconnection.
- 2 or 4 fiber channels option.
- Single mode or Multimode.
- Fully sealed rugged compact design.
Specifications:
|
Optical Loss |
MM 50/125 μm≤ 3.0 dBMM
62.5/125 μm≤ 3.0 dBSM 9/125 μm≤ 4.0 dB |
|
Return Loss |
SM 9/125 μm > 25 dB |
|
Durability |
3000 matings minimum |
|
Operating temperature |
-55 to +85 °C |
|
Storage temperature |
-55 to +85 °C |
|
Water immersion |
2 m depth duration 24
Hours |
|
Vibration Sinusoidal |
10-500 Hz, 3 directions,
0.75 mm amplitude @ 10 G acceleration |
|
Free fall resistance |
500 falls from 1.2 m
height |
|
Bump resistance |
4000 bumps @ 40 G
acceleration |
Application:
- Broadcast.
- Military communications.
- Industrial.
- Petrochemical.

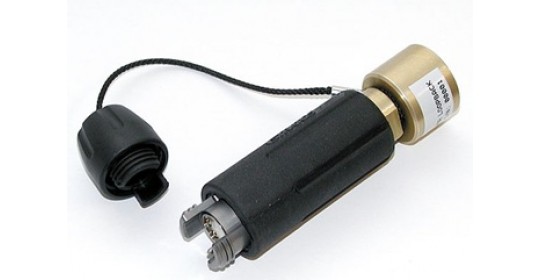

HMA-J-LB Loopback plug connector.
