Product details:

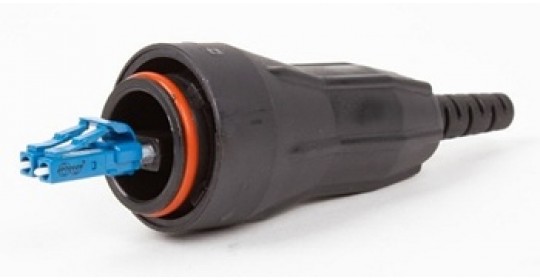

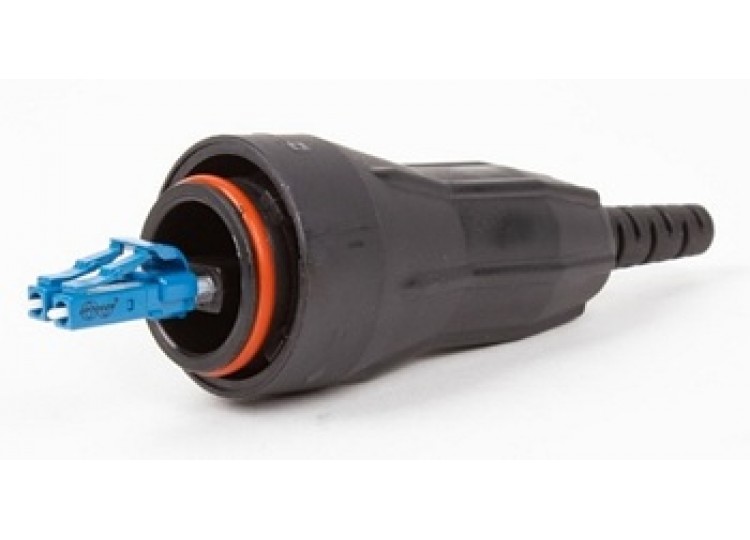

The OPTOKON introducing new effective harsh environment patchcord with HA series connectors, which is designed for FTTH projects and FTTA (Fiber To The Antenna). Pre connectorized cables significantly reduce cable installation time, saving money and accelerating FTTH subscriber connections, FTTA and various industrial applications.

Features:

Simple bayonet locking system.
FullAXS-LC Compatible.
Armored cable with grounding wire.
Proven design provides a hardened connector for outside plant deployment
-Single mode/Multimode SC, LC duplex hardened connector.
-Environmentally-sealed connector housing permits rapid connection to external flush-mounted bulkhead adapter.
Robust design keeps connector intact during installation.
Fully standards-compliant product ensures the highest network reliability and durability.
Connectors designed and third-party tested to Telcordia GR-3120 requirements.

Specifications:

	MM	UPC	APC
Insertion Loss (IL) typical / Return Loss (RL) minimal
Duplex LC connector	0.15 dB / 30 dB	0.15 dB / 50 dB	0.15 dB / 60 dB
Simplex SC connector	0.15 dB / 30 dB	0.15 dB / 50 dB	0.15 dB / 60 dB
Operating temperature	-40°C to +85°C
Durability	min 1000 cycles
Assembly procedure	glue and polish
Connection	physical contact
Lock mechanism	Bayonet locking system
Standards	Telcordia GR-3120
Ferrule material	full ceramic zirconia
Cable diameter range	4 – 6 mm, armored FO cable 4.8 mm
Outer jacket material	Halogen free flame retardant
Cable attenuation	0.40 dB/km @ 1310 nm, 0.25 dB/km @ 1550 nm
