Product details:
The OPTOKON introducing new effective low
cost harsh environment MPO connector series which is designed use in harsh
environmental conditions. Preconnectorized cables significantly reduce cable
installation time, saving money and accelerating end user connections.
Features:
- Simple
locking system.
- Low
Insertion Loss& Reflection.
- Available
SM (angled) and MM (flat).
- Up
to 12 fibers termination.
- Easy
connection and disconnection.
- No
need for matching material.
- Proven
design provides a hardened connector for outside plant deployment.
- Environmentally-sealed
connector housing permits rapid connection to external flush-mounted
bulkhead adapter.
- Robust
design keeps connector intact during installation.
- Fully
standards-compliant product ensures the highest network reliability and
durability.
Specifications:
|
|
Singlemode (angled 8°) |
Multimode (flat) |
|
Insertion Loss (dB) |
0.50 typ, 0.80 max |
0.30 typ, 0.60 max |
|
Optical Return Loss (dB) |
> 50 |
> 20 dB |
|
Operating Temperature |
-40°C to +80°C |
-40°C to +80°C |
|
Durability |
< 0.30 dB change 500 remates |
< 0.20 dB change 500 remates |
|
Ingress protection |
IP67 |
|

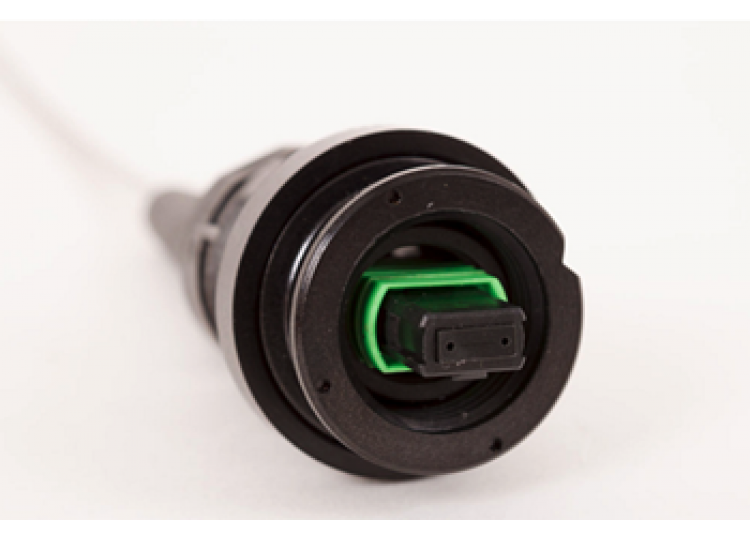

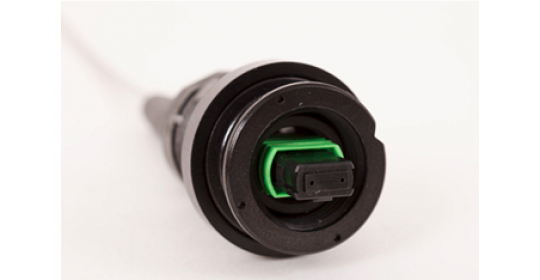

HE-MPO series - MPO ruggedized connector.
