Product details:

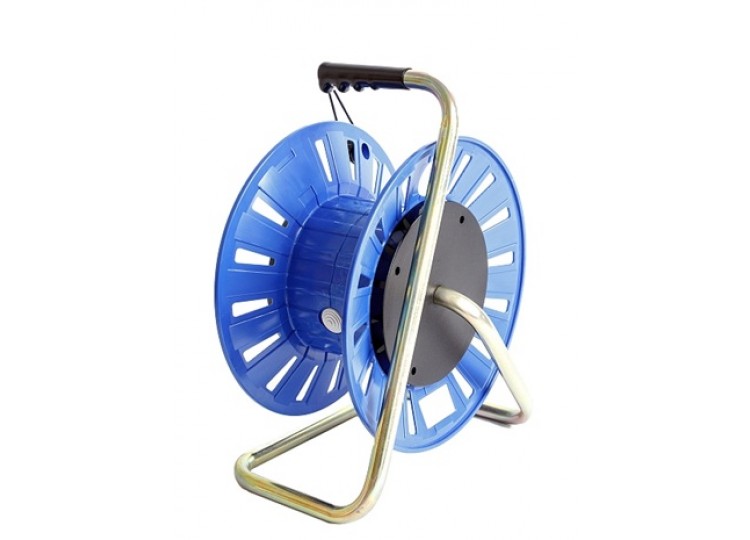

OPTOKON offers the CBD-100 compact portable cable drum. The drum is ideal for use in military, industrial, broadcast and audio applications.
The drum is designed for winding up to 100 m of
military tactical cable with an outer diameter of 6 mm. The standard
application includes tactical 4 fibers military cable terminated with a HMA-J
connector on one side.
The internal end of the cable is terminated
with 4 x SC/APC connectors connected with adapters. Two duplex SC adapters are
installed in a protected box on the drum body and can be accessed after opening
the cover. Once closed, there is IP 54 environmental protection that enables
storage and handling of the drum in outdoor conditions.
Features:
- Small,
lightweight and durable design.
- Quick
and easy use.
- HMA-J
to 4x SC/APC four fibers cable.
- 2
x duplex SC adapters fixed to the drum body.
- Up
to 100 m of cable, diameter 6 mm.
Specifications:
|
Dimensions:
drum Ø 275 mm, 370 x 280 x 210 mm (H x W x D) |
|
Weight (without
cable): 1 kg |
|
Cable
length:
up to 100 m |
|
Protection:
IP 54 |
|
Tensile
strength
80 N (fixing cable to the drum) |

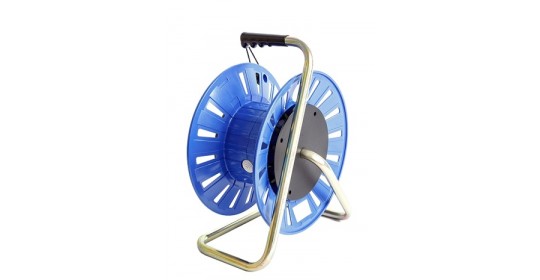

CBD-100 Compact Cable Drum.
