Description:

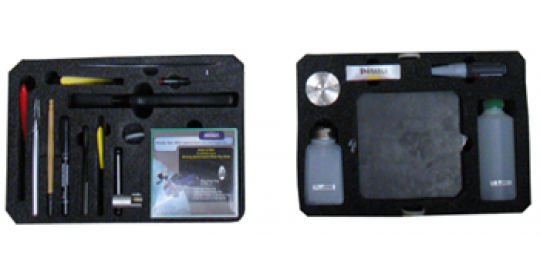

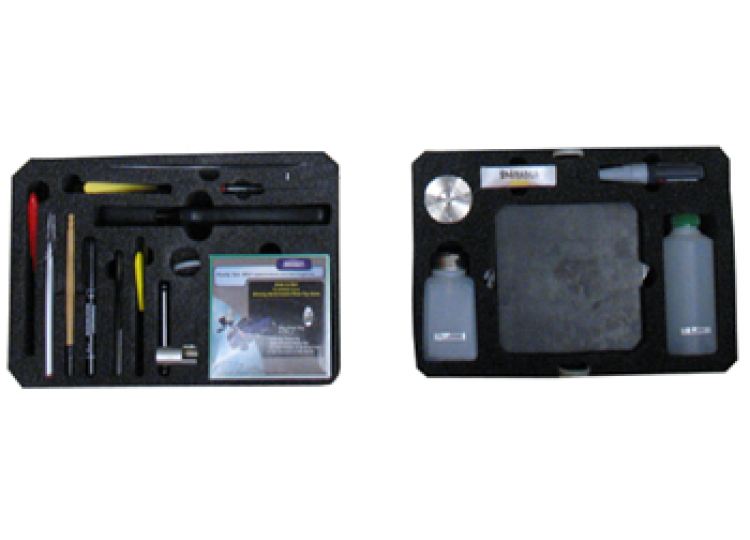

OMK-SR-UNI Termination & Repair Tool Kit is designed for military connectors. Tool Kit is delivered in aluminum case suitable for military tactical applications. Tool Kit includes all necessary instruments and accessories for termination of harsh environment fiber optic connectors. All instruments are placed in special pre formed plastic foam secures tooling during transit and allows simple checking inventory.

Tool Kit is designed for harsh environmental conditions use: water resistant, temperature range -40 °C to +80 °C, resistant to UV and magnetic emission.

Features:

• Water Resistant.
• Temperature range -40 °C to +80 °C.
• resistant to UV and magnetic emission.

Specifications:

Type:     OMK-SR-UNI  Termination & Repair Tool Kit.
Dimensions:    400 x 300 x 340 mm.
Weight:    9.2 kg.

Equipment:
•    Weather stripping for water protection.
•    Coated holder with return spring.
•    Reinforced corners for stacking.
•    Special pre formed plastic foam.

Type:    OMB-SR-UNI  Transport box:
Dimensions:    420 x 305 x 270 mm.
Weight:    10.3 kg.

Equipment:
•    Two holders on side cheek.
•    Surface.
    Aluminium surface finish in accordance with TLA-003, Color green RAL 6031-F9

Tested:

•    MIL-Standard 810/D.
•    VG-Norms (VG 85632, VG 956 17A, VG 95613/Z).
•    tested in accordance with GGCS.
•    DIN.

Transport boxes were tested in accordance with:

•    Tightness test DIN 53122/1.
•    Corrosion immunity DIN 50021.
•    Free fall resistance DIN 55441/2.
•    Stacking deformation VG 95613/1.
•    Vibration sinusoidal DIN ISO 8318.
•    Holder tightness test VG95613/1.

Application:

• Harsh Environment Conditions.
