Construction
Part Number | 90152025 |
Inner Conductor | 140xØ 0.15 mm (2x2.5mm²) Stranded bare OFC Wires |
Insulation | Ø 3.20mm PVC blue-red |
Jacket | Ø 8.0 mm Flexible PVC, Matt |
Color | Dark, Gray,Black |
Standard Packing | 100/500/1000 m Plywood Spool |
Approx.Weight | 107 Kg/Km |
Technical and Electrical Properties (20°C)
Conductor Resistance | <8 Ω/Km |
Operating Voltage | 300 Veff |
Test Voltage | 2000 Veff |
Insulation Resistance | >200 M.ΩxKm |
Temperature Range | -30 ºC........+70 ºC |

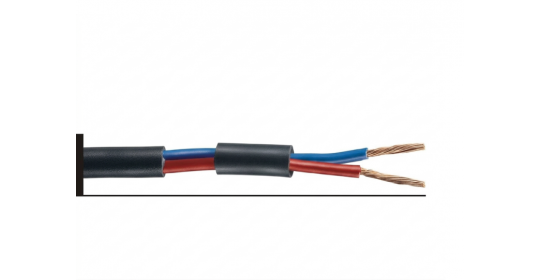

Heavy-Duty 2-Core Loudspeaker Cable 2.5 Sqmm Unscreened.
