Construction
Part Number | 90152040 |
Inner Conductor | 224xØ 0.15 mm (2x4.0mm²) Stranded bare OFC Wires |
Insulation | Ø 3.90mm PVC blue-red |
Jacket | Ø 9.4 mm Flexible PVC, Matt |
Color | Dark, Gray,Black |
Standard Packing | 100/500 m Plywood Spool 1000 m Wooden Spool |
Approx.Weight | 165 Kg/Km |
Technical and Electrical Properties (20°C)
Conductor Resistance | <4.95 Ω/Km |
Operating Voltage | 300 Veff |
Test Voltage | 2000 Veff |
Insulation Resistance | >200 M.ΩxKm |
Temperature Range | -30 ºC........+70 ºC |

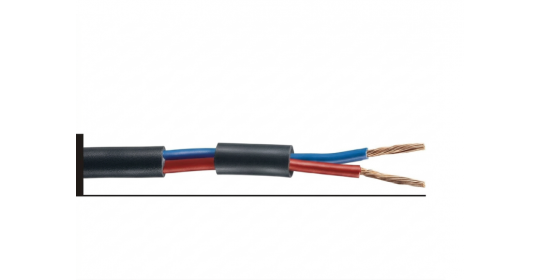

Heavy-Duty 2-Core Loudspeaker Cable 4 Sqmm Unscreened.
