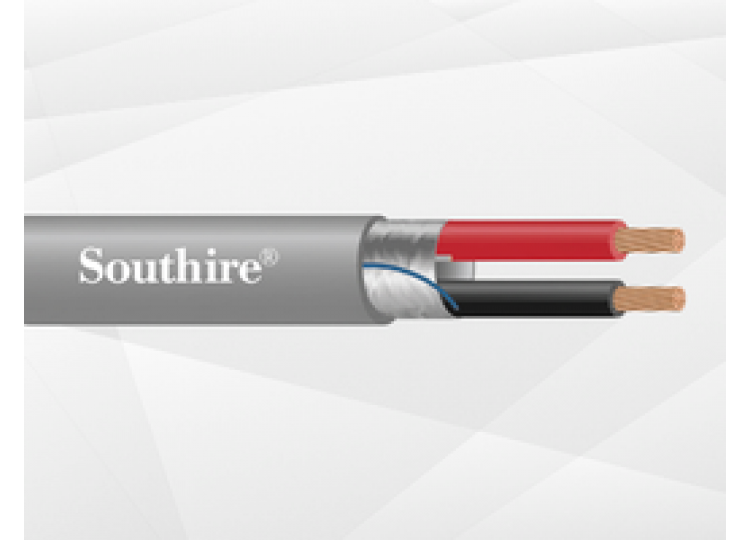

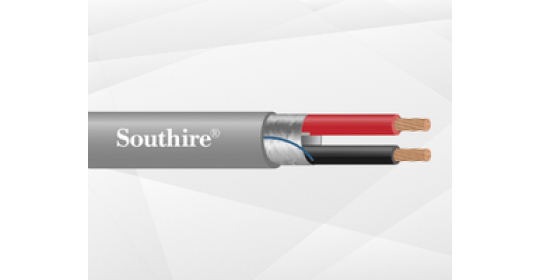

Construction:

14 awg 19 strand bare copper 2 conductors shielded and jacketed

Insulation:

Sr-pvc

Color code:

Black, red

Shield/drain:

Aluminum/polyester foil (out); 24 awg 7 strand tc drain

Assembly:

2 conductors twisted, shielded and jacketed

Jacket:

Pvc gray

Diameter:

0.218” nominal

Cable wt:

39 lbs/1000 ft approx (net weight)

Print legend:

14 awg 2/c e57497 (ul) cl3r/fplr -- made in usa rohs-2 compliant -- xx/xx/xx (month/day/year) xxxxxx (w/o #)

Footage marks:

Sequentially foot-print to whatever the put-up is in ascending/descending order.

Marker tape:

No

Nec:

Cl3r/fplr

For plenum rated version go to spec. No. P60022

Compliance:

Ul 13 cl3r by (ul) / nec article 725 / rohs

Flame test:

Ul 1666 vertical riser / csa ft4 (ul 1581)

Capacitance:

53.6 pf/ft nominal

Vel of prop:

55%

Impedance:

34 ohms

Resistance:

2.73 ohms d.c. per 1000 ft @ 68 deg. F maximum

Temp/voltage:

60c / 300v
