- Relay switchable contact.
- Can be used together with equipment, for example for switching it ON/OFF.
- For controlling devices that have dry contact input or controlling their power source.
- Can manage 5A power for magnetic locks, bolt locks, solenoid electromagnets, sirens, light sources, heaters, air conditioners, etc.
- Can be connected to any Vutlan unit with 12V relay outputs.
Specifications
- Used for:Can be connected to Vutlan monitoring system
with 12V DC outputs. Used as a relay switchable contact.
- Input:wire terminal, pitch 3.81mm, 2P
- Outputs:wire terminal, pitch 5.0mm, 2P
- Operating temperature:Min. -50 °C - Max.105 °C
- Operating humidity:Min. 5% - Max. 95% (Non-Condensing)
- Max switching current:5A
- Max. switching voltage:250VAC / 30VDC
- Max. switching power:1250VA / 150W
- Min. contact load:No gold plated: 5VDC 10mA
- Power consumption:12 mW
- Max. distance:200 meters
- Dimensions:60×18×18 mm
- Mounting:The mounting bracket, sticker, and screws are
included.
- Manufactured in:Slovak Republic, E.U., Vutlan s.r.o.
- HS Code:9025 11 800
- GTIN:8588009886525
- Warranty:90 days

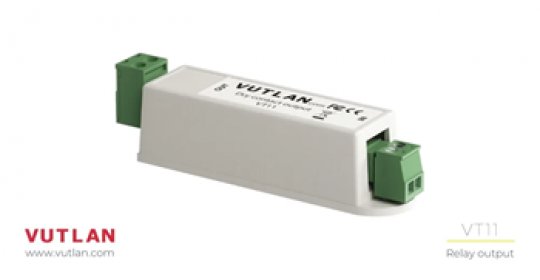

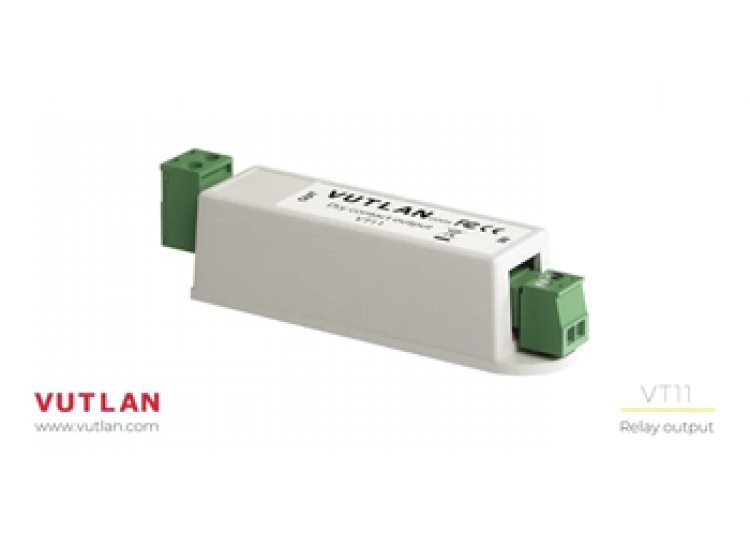

Dry Contact Out.
