Product details:

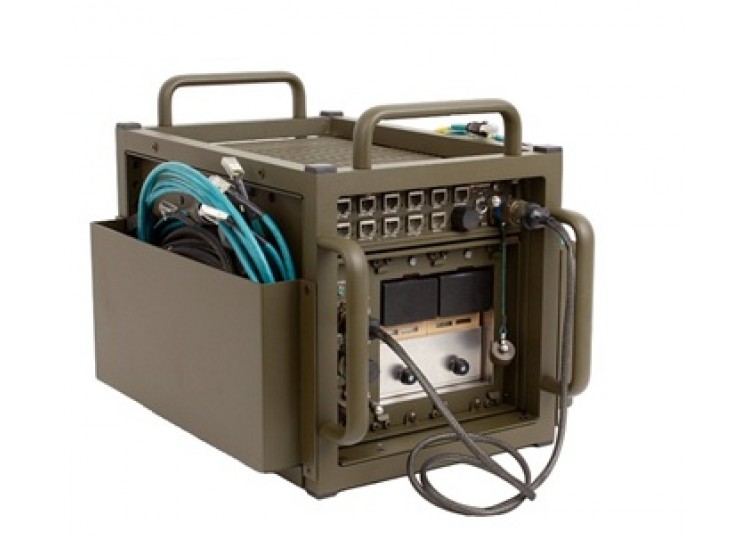

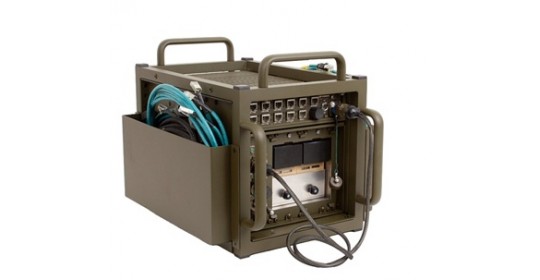

The LMDS is a lightweight mobile data switch in a portable detachable frame powered by a built-in UPS. Both devices meet the required IP protection. It can be powered from AC 230 V or DC 24 V mains. The batteries can be monitored - transparent window on the cover:

The switch based on the proven Cisco ESS 3300 technology in a ruggedized design meets all requirements for setting up and operating mobile data networks.

A 10 Ah battery type BB-2590U serves as a backup power supply. This assembly ensures compatibility on the contemporary battlefield and unifies the charging sources used, for example, in L3Harris FALCON II, III and FALCON IV radios.

Features:

•    Ruggedized design for setting up mobile networks.
•    Proven Cisco ESS 3300 technology:
•    2x WAN 1/10G.
•    8x LAN 10/100/1000Base-T(X) with PoE.
•    MRJ-resistant connectors.
•    Reliable, widely used batteries - 2 pcs.
•    Battery status indication.
•    Easy battery replacement during operation1.
•    External Power Supply:
      - 230 V AC from AC generator.
      - 24 V DC from the vehicle's on-board power supply.

Note:

1) Replacement can be done in operating condition one battery at a time, power is provided by the second battery.
