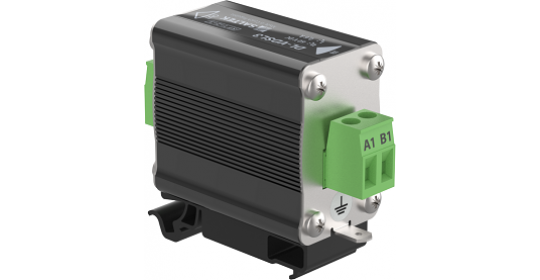

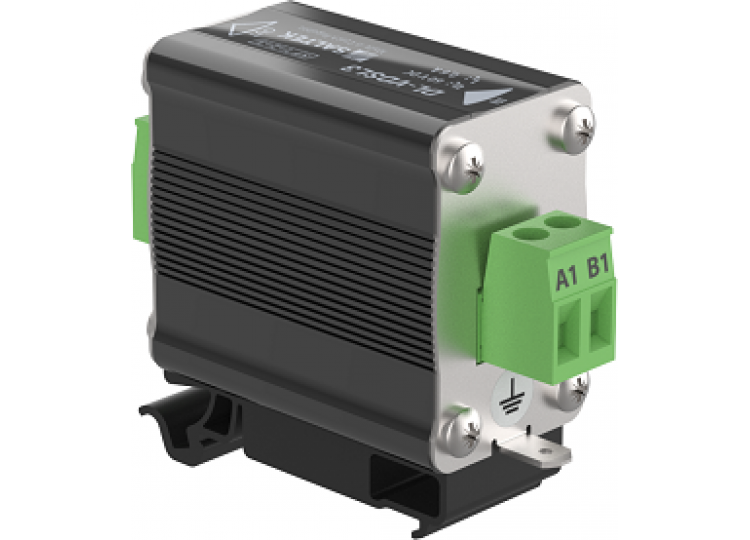

SALTEK DL-VDSL3 SPD – Data, Signalling and Telecommunication

Surge protection for high-speed ADSL2, VDSL2, VDSL2+, VDSL3 lines.

Specifications:

Parameter name		Parameter value
Type of SPD		D1,C2,C3
Location of SPD		ST 1+2+3
Mounting		DIN rail 35 mm
Maximum operating voltage	U_c	60.00 V DC
Serial resistance per core	R	2.20 Ω
Nominal load current	I_L	0.600 A
C2 nominal discharge current (8/20 µs) core-core	I_n	5.00 kA
D1 total discharge current (10/350 µs) cores-PE	I_Total	5.00 kA
C2 voltage protection level mode core-core (@Uoc/In)	U_p	450,00 V (10 kV / 5 kA)
C2 voltage protection level mode core-PE (@Uoc/In)	U_p	1100,00 V (10 kV / 5 kA)
C3 voltage protection level mode core-core (@In - 1 kV/µs)	U_p	90,00 V (10 A)
C3 voltage protection level mode core-PE (@In - 1 kV/µs)	U_p	600,00 V (10 A)
Response time core-core	t_a	1 ns
Response time core-PE	t_a	100 ns
Treshold frequency core-core	f	300 MHz (@ −1 dB)
Insertion loss	A	<0,2 dB (@ 35 MHz)
Connection (input - output)		terminals-terminals
Degree of protection		IP 20
Range of ambient temperatures (min/max)		-40 / 70 °C
Humidity		5 - 95 %
According to standard		EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class		EC000943
Customs tariff number		85363010
EAN		8595090571209
