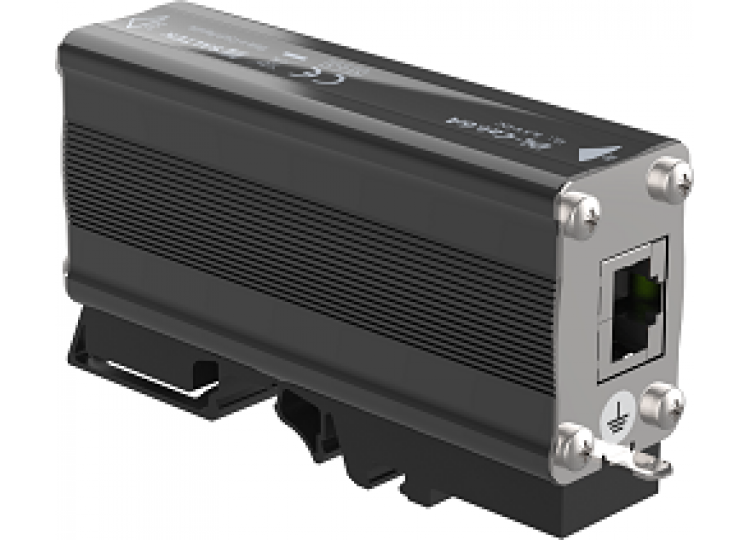

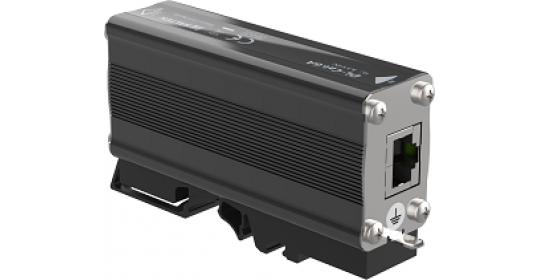

SALTEK DL-Cat.6A SPD – Data, Signalling and Telecommunication

RJ45 sockets1.

Fine surge protection of Ethernet line.
Installation close to protected equipment.
For protection of Ethernet line Cat. 6A against surge voltage.
In the scope of delivery: universal plastic adapter for mounting on DIN rail and GND 2 holder.

Specifications:

Parameter name		Parameter value
Type of SPD		C2,C3
Location of SPD		ST 2+3
Mounting		DIN rail 35 mm
Maximum operating voltage	U_c	6.00 V AC
Maximum operating voltage	U_c	8.50 V DC
Maximum operating voltage POE	U_c	6.00 V AC
Maximum operating voltage POE	U_c	8.50 V DC
Nominal load current per core at 25 °C	I_L	0.5 A
Treshold frequency core-core	f	500.00 MHz
Insertion attenuation at treshhold frequency		2.90 dB
C2 nominal discharge current (8/20 µs) per core	I_n	0.20 kA
C2 total discharge current (8/20 µs) cores-PE	I_Total	1.60 kA
C2 voltage protection level mode (POE) at In	U_p	55.00 V
C2 voltage protection level mode core-PE at In	U_p	400 V
C2 voltage protection level mode core-core at In	U_p	55 V
C3 voltage protection level mode (POE) at 1 kV/µs		30.00 V
C3 voltage protection level mode core-PE at 1 kV/µs	U_p	600 V
C3 voltage protection level mode core-core at 1 kV/µs	U_p	30 V
Response time core-core	t_a	1 ns
Response time core-PE	t_a	100 ns
Connection (input - output)		RJ45/RJ45
Degree of protection		IP 20
Range of ambient temperatures (min/max)		-40 / 80 °C
Humidity		5 - 95 %
According to standard		EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class		EC000943
Customs tariff number		85363030
EAN		8595090565741
