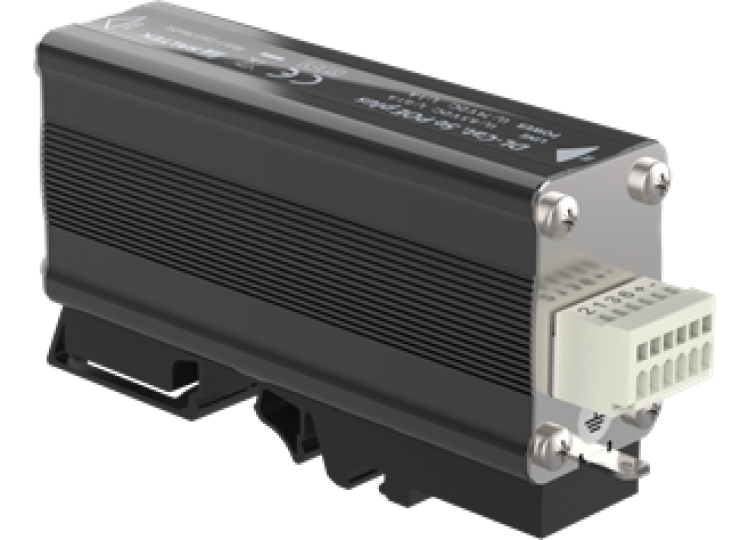

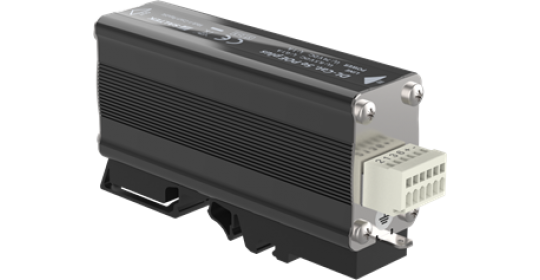

Screwless terminals / RJ45 socket.
- Combination of coarse and fine protection of Ethernet line with PoE.
- Installation close to protected equipment.
- For protection of WiFi equipment, IP cameras, etc., installed even outside building, against surge voltage.
- In the scope of delivery: universal plastic adapter for mounting on DIN rail and GND 2 holder
Specifications:
|
Parameter name |
Parameter value |
|
|
Type
of SPD |
C2,C3 |
|
|
Location
of SPD |
ST 2+3 |
|
|
Mounting |
DIN rail 35 mm |
|
|
Maximum
operating voltage |
Uc |
6.00 V AC |
|
Maximum
operating voltage |
Uc |
8.50 V DC |
|
Maximum
operating voltage POE |
Uc |
40.00 V AC |
|
Maximum
operating voltage POE |
Uc |
74.00 V DC |
|
Nominal
load current per core at 25 °C |
IL |
0.1 A |
|
C2
nominal discharge current (8/20 µs) per core |
In |
1.50 kA |
|
C2
voltage protection level mode (POE) at In |
Up |
320.00 V |
|
C2
voltage protection level mode core-PE at In |
Up |
490 V |
|
C2
voltage protection level mode core-core at In |
Up |
180 V |
|
C3
voltage protection level mode core-PE at 1 kV/µs |
Up |
560 V |
|
C3
voltage protection level mode core-core at 1 kV/µs |
Up |
60 V |
|
Connection
(input - output) |
screwless terminals/RJ 45 |
|
|
Degree
of protection |
IP 20 |
|
|
Range
of ambient temperatures (min/max) |
-40 / 80 °C |
|
|
According
to standard |
EN 61643-21+A1,A2:2013, IEC
61643-21+A1,A2:2012 |
|
|
ETIM
Class |
EC001473 |
|
|
Customs
tariff number |
85363010 |
|
|
EAN |
8595090538066 |
Dimensions:
Surge protection for Fast Ethernet with PoE, up to 1 A PoE
