SALTEK - DL-1G-POE-PCB-INJECTOR - SPD – Data, Signalling and Telecommunication

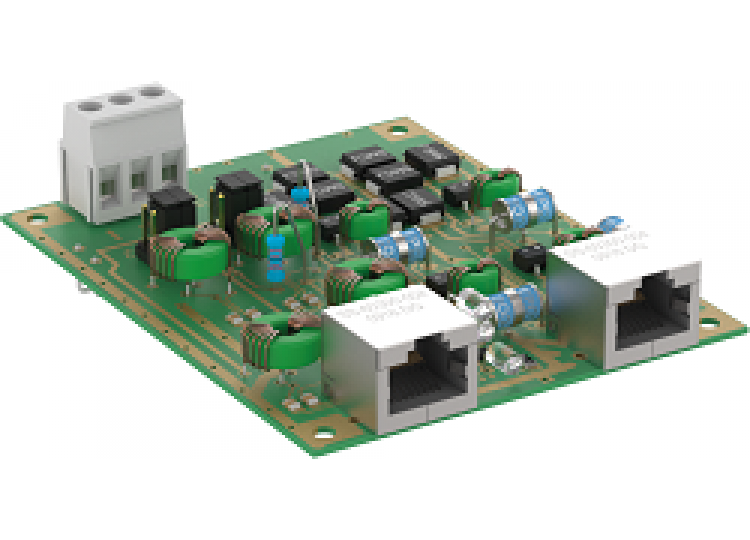

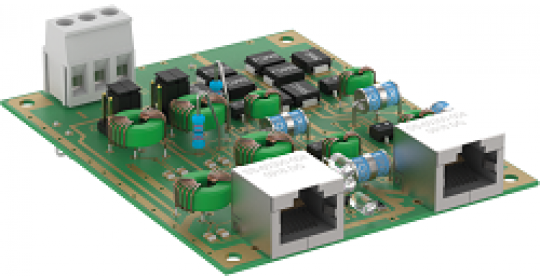

RJ45 sockets, PCB, with injector.

Combination of coarse and fine protection of Ethernet line with PoE.
Instalation at the entry of the line into building and close to protected equipment, at the boundary of LPZ 0 and LPZ 1 or higher.
For protection of Ethernet line Cat. 6 or Cat. 6A with PoE (Power over Ethernet) in mode A or B against surge voltage.
For assembly to DL-CS-RACK-1U-INJECTOR.

Specifications:

Parameter name		Parameter value
Type of SPD		D1,C2,C3
Location of SPD		ST 1+2+3
Mounting		DL-CS-RACK-1U-INJECTOR
Maximum operating voltage	U_c	8.50 V DC
Maximum operating voltage POE	U_c	58.00 V DC
Nominal load current per core at 25 °C	I_L	0.5 A
Treshold frequency core-core	f	250.00 MHz
Insertion attenuation at treshhold frequency		1.20 dB
D1 total discharge current (10/350 µs) cores-PE	I_Total	2.00 kA
C2 nominal discharge current (8/20 µs) per core	I_n	0.15 kA
C2 total discharge current (8/20 µs) cores-PE	I_Total	10.00 kA
C2 voltage protection level mode core-PE at In = 1,25 kA	U_p	700.00 V
C2 voltage protection level mode core-core at In	U_p	70 V
C3 voltage protection level mode (POE) at 1 kV/µs		80.00 V
C2 voltage protection level mode (POE) at In = 1,25 kA	U_c	90.00 V
C3 voltage protection level mode core-PE at 1 kV/µs	U_p	500 V
C3 voltage protection level mode core-core at 1 kV/µs	U_p	80 V
Response time core-core	t_a	1 ns
Response time core-PE	t_a	100 ns
Connection (input - output)		RJ 45/RJ 45
Degree of protection		IP 20
Range of ambient temperatures (min/max)		-40 / 80 °C
Humidity		5 - 95 %
According to standard		EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
Customs tariff number		85363030
EAN		8595090565703
