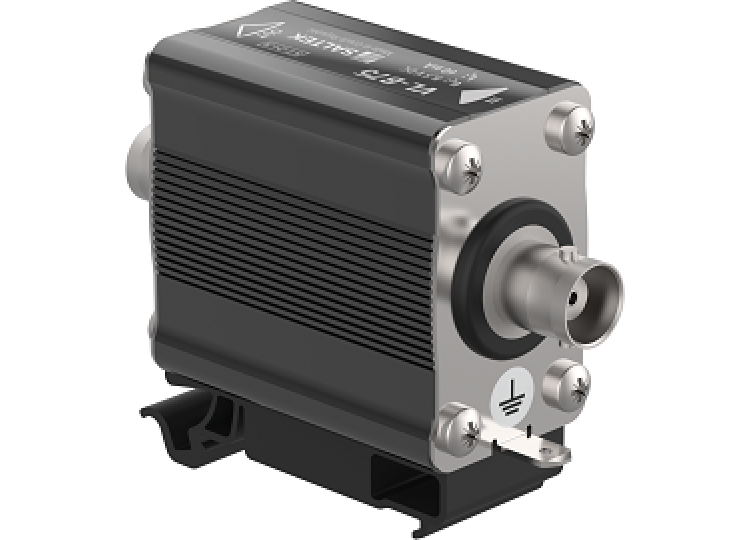

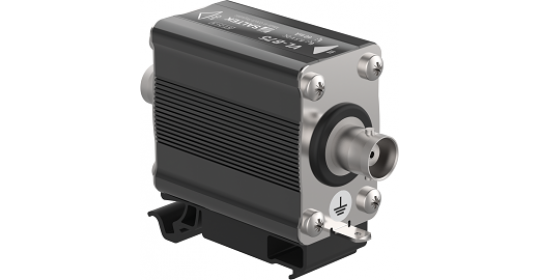

BNC connectors, 75 ohm.
- Combination of coarse and fine protection for
video circuits.
- Installation close to protected equipment.
- For protection of video systems, CCTV, etc.
against surge voltage.
- In the scope of delivery: universal plastic adapter for mounting on DIN rail and GND 2 holder.
Specifications:
|
Parameter name |
Parameter value |
|
|
Type
of SPD |
C2,C3 |
|
|
Location
of SPD |
ST 2+3 |
|
|
Mounting |
DIN rail 35 mm |
|
|
Maximum
operating voltage |
Uc |
6.00 V AC |
|
Maximum
operating voltage |
Uc |
8.50 V DC |
|
Nominal
load current |
IL |
0.060 A |
|
Serial
resistance per core |
R |
0.27 Ω |
|
C2
nominal discharge current (8/20 µs) SH-PE |
In |
5.00 kA |
|
C2
nominal discharge current (8/20 µs) core-SH |
In |
5.00 kA |
|
C2
voltage protection level mode SH-PE at In |
Up |
350 V |
|
C2
voltage protection level mode core-SH at In |
Up |
150 V |
|
C3
voltage protection level mode SH-PE at 1 kV/µs |
Up |
350 V |
|
C3
voltage protection level mode core-SH at 1 kV/µs |
Up |
35 V |
|
Response
time core-SH |
ta |
1 ns |
|
Response
time SH-PE |
ta |
100 ns |
|
Connection
(input - output) |
BNC 75 |
|
|
Degree
of protection |
IP 20 |
|
|
Range
of ambient temperatures (min/max) |
-40 / 80 °C |
|
|
According
to standard |
EN 61643-21+A1,A2:2013, IEC
61643-21+A1,A2:2012 |
|
|
ETIM
Class |
EC001625 |
|
|
Customs
tariff number |
85363010 |
|
|
EAN |
8595090533764 |
Dimensions:
Surge protection eg. for video systems, CCTV, ect., connectors BNC 75 ohm
