Wall Mounted Cabinet -Single Section.
- Front glass door, Blank panel with small round lock.
- Removable side doors with plastic fasteners, lock is chargeable.
- Rear solid metal door.
- RU markings on front & rear mounting rails.
- Top & bottom wire path.
- Hinge can be installed at either side.
- Earthing bolts.
- Loading capacity:60KGS.
- Thickness: Mounting Rails: 1.5mm, others 1.0-1.2mm.
- Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1,DIN41494; PART7, GB/T3047.2-92.
- Surface Finish: Degrease, acid pickling, rust prevention and Parkerizing, pure water Cleaning, static electricity plastic painting.
|
Model Number |
Width×Depth×Height |
Capacity |
|
B-SS66160NB |
600x600x815 mm |
16U |

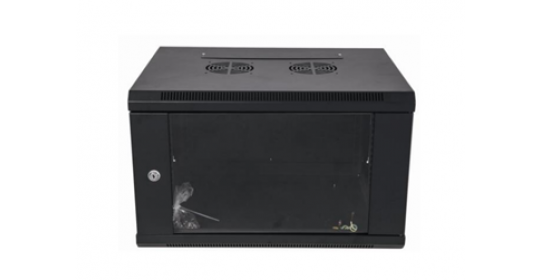

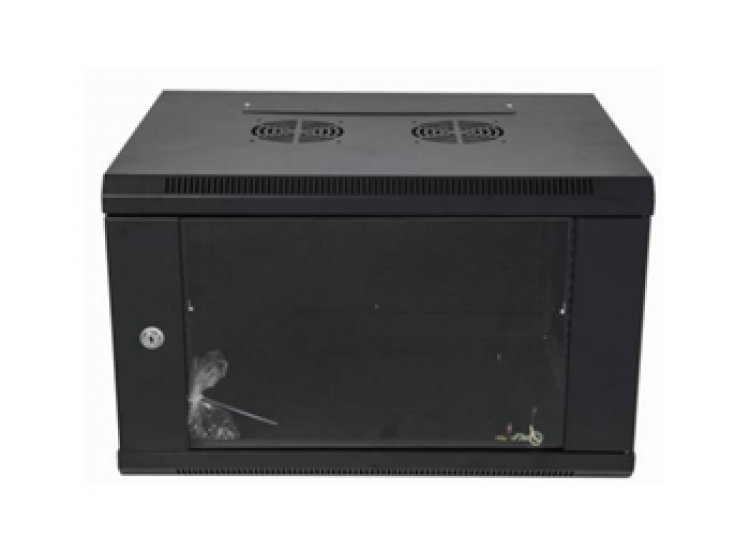

Cabinet 16U W600 D600 W/FG Door, SP Removable, W/1Fan.
