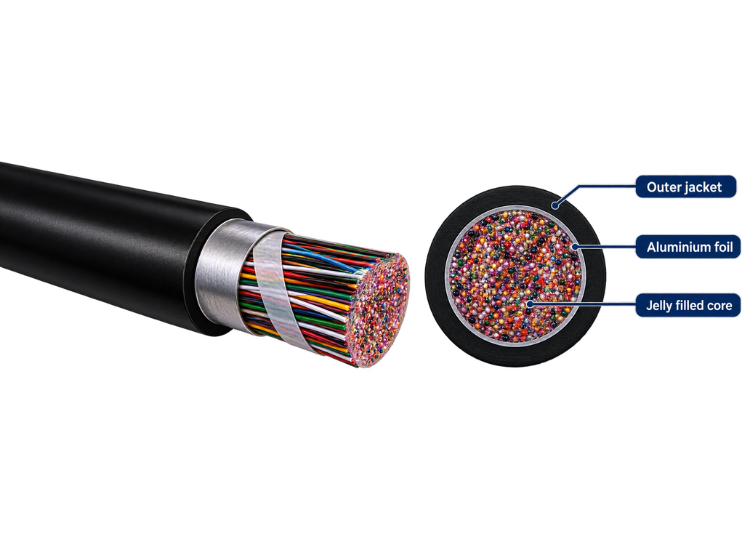

- Telephone Cable with cellular polyethylene insulation, jelly filled with petroleum jelly and a polyethylene coating.
- For use in the Local Distribution network.
- Insulated conductors uniformly twisted together to form a pair.
- The water resistant filling compound is applied to the air spaces within the cable core to provide the water-proofnes
- Wrapping is applied over the cable core.
- A flat aluminium foil coated with copolymer on both sides is applied longitudinally over the core covering as screen.
- Black linear-low density polyethylene compound is extruded over the screen.
Physical Description
Conductors | Solid annealed bare copper conductors conforming to CCITT Yellow Book Vol. III – 2-G.541 b article, IEC 28 and ASTM B3 |
Insulation | Foam-skin polyolen conforming to ASDM D1248 to BS 6234 Type 03 |
Cable Assembly | Twisted pairs, cabled into sub-units, cabled in a circular form |
Color Code | As indicated below |
Filling Compound | Water resistant lling compound, applied to the gaps between the pairs |
Tape wrap | Non hygroscopic polyester tape, wrapped with 30% overlap |
Identification tape | A suitable tape, durably marked with the manufacturer’s name, year of manufacture and type of cable is placed under the core covering |
Flooding compound | Water resistant ‑flooding compound, applied between the core wrap and the aluminum foil |
Screen ( Shield) | Copolymer coated aluminum foil having thickness of 0.3mm, bonded to the outer jacket, conforming to ASTM B736 |
Outer Jacket | Black PE compound |
Mechanical Parameters of basic conductors
Nominal Conductor Diameter (mm) | 0.63 |
Maximum Conductor Diameter (mm) | 0.64 |
Minimum Conductor Elongation, % | 15 |
Insulated Conductor diameter (mm) | 1.15 |
Insulation ultimate tensile force minimum (N) | 3.0 |
Electrical Properties
DC resistance @20˚C Ohm/km Maximum Average | 58 |
DC resistance @20˚C Ohm/km Maximum for 1% of cases | 60 |
Mutual Capacitance nF/km, max Average | 56 |
Mutual Capacitance nF/km, max for 1% of cases | 60 |
Pair to pair capacitance unbalance, pF max | 275 |
Insulation Resistance, 500V DC Minimum Mohm.km | 1500 |
Colour codes of unit
Pair No | Colour of conductor insulation | |
| A – wire | B – wire |
1 | White | Blue |
2 | White | Orange |
3 | ||

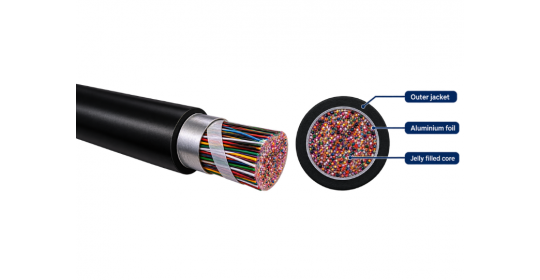

External 50 Pair Telephone Cable 0.63mm Moisture Resistant Jelly Filled.
- Brand: HES KABLO - Turkey Categories Telephone
- Product Code: 260.180.00036
- MPN: CS1 50/0.63
AED31.84
Terms & Conditions
All prices are subject to confirmation and exclude applicable taxes unless otherwise stated. Payment terms are as agreed in the quotation or invoice. Orders will be processed only after payment confirmation or receipt of an approved purchase order, where applicable. Dafnia reserves the right to modify product pricing, availability, and payment terms without prior notice.
