VT960DC is used for environmental monitoring and control of equipment of IT facilities.
Can use up to 1000 different elements - notifications, triggers, timers, logics, sensors, dry contacts.
HARDWARE: | SOFTWARE: |
• CAN port for digital sensors | • Embedded Web interface |
• 8 AutoSense RJ-12 ports for sensors | • Virtual sensors & elements: Group, E-mail, SNMP trap, SNMP Get, SMS, PINGs, Triggers, Timers |
• Min. x16, Max. 120 dry contacts (Bank A, B, C) | • Up to x4 IP cameras |
• USB port for web camera or for USB flash for saving logs | • Notifications: E-mail, SMS, Syslog, Event log, SNMP Trap, SNMP Get, Web-to-SMS |
• x2 latching relays, x2 12V 0.25A output relays | • Network protocols: DHCP, HTTP, HTTPS, SNMP v.1, v.2c, v.3, SMTP, SSL, FTP, Syslog, SSH |
• LEDs: power, relays, errors, CAN | • Configurable embedded logic |
• Onboard temperature, voltage and current sensor | • Sensor graphing |
• Internal access LTE modem extension slot (can work as a router) | • Multilanguage support |
• AV IN / AV OUT (analog video, audio input & output) | • User Access and Permissions |
• 12V power supply for analog camera | • NMS: Infrastructure Monitoring Software (free) |
• 1-Wire slot for RFID reader | • RADIUS server, OpenVPN client, Watchdog, Built-in clock with time synchronization |
• Internal Dry contacts board (max. x32 inputs, x8 outputs) (ordered separately) | |
• 10/100 Mbit Ethernet port | |
• External chassis earthing | |
• Internal 2.5” SATA (SSD or HDD), SD card support | |
• Power supply: 230V (VT960) or DC 48 V (VT960DC | |
Features
• Receive notifications of anomalous events via email, SMS / MMS, SNMP traps.
• Integrates with network management systems via SNMP v.1 and Encrypted SNMP v.3.
• Uses Linux operating system for maximum stability and flexibility.
• Web GUI for PC, smartphones and tablets; free firmware upgrades and utilities.
• Monitor up to200 different sensors.
• Compatible with full range of different third-party sensors.
• Embedded web server displays sensor information and live video from connected cameras.
• Record, play and view in real time video from video cameras.
• Support for SATA drive allows to save logs, video stream or run software and scripts.
• LTE, GPS modem can work as a router to allow internet access.

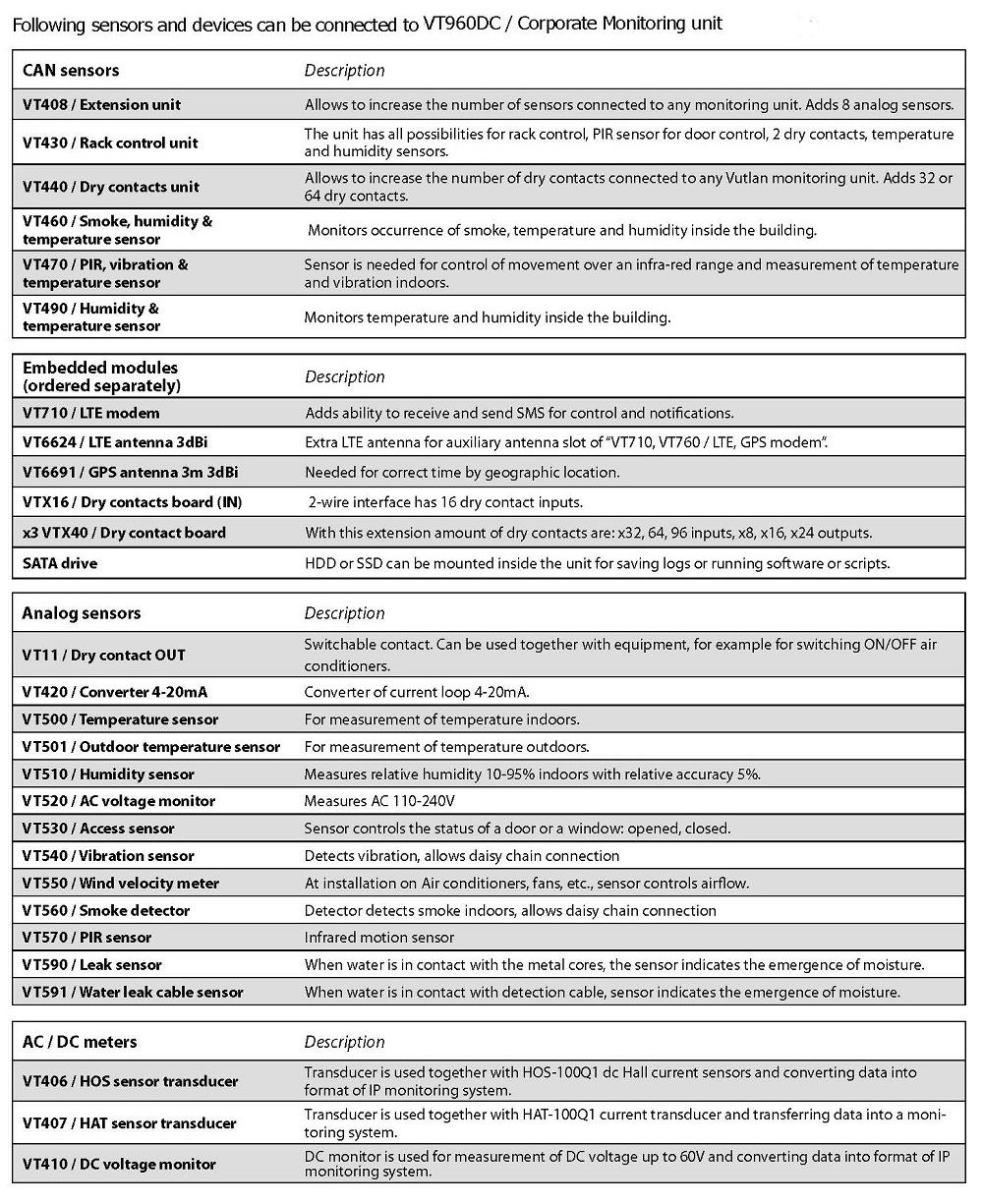

Scalability
Specifications
Corporate Infrastructure Monitoring and Control Unit
