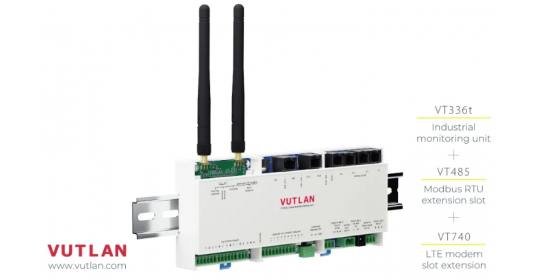

The VT336 / Industial Monitoring Unit can be used for remote environmental monitoring in industrial settings:

• Monitoring: Measures temperature, humidity, voltage, access, smoke, dust, vibration, access, leakage, movement, airflow.
• I/O Controller: 4 analog Plug and Play inputs, CAN input, 10 dry contacts IN and 5 OUT, 2 relays 12V, SD, USB.
• Scalability: Supports up to 1000 elements, including sensors, virtual sensors, logic, notifications.
• Built-in Web Interface: 100Mbit/s, IPv4, IPv6 by demand.
• Extensions: 4G modem, Modbus.
• Notifications: Telegram, mail; VPN, SMS and voice call in case of 4G modem built-IN.
• Processor: 720Mhz dual-core Cortex-A7,  128Mbit RAM.

Specification:

• Device type: Environmental monitoring unit
• Network Interface:100Mbit/s, IPv4, IPv6 by demand.
• Analog ports: 4 Plug and Play
• Response time: 1 sec
• CAN: 1
• Max. distance from the unit: Analog Plug and Play sensors: 50-150m, CAN - 225m
• Maximum units in a CAN bus: 31, depends on CAN device type
• Relays with output 12V: 2
• Dry contacts IN: 10
• Dry contacts OUT: 5
• Mounting: DIN
• Extensions: SD, USB-C
• Expansions: 4G, RS485
• Status Indicators: Red (Error), Green Led, Yellow, Orange (Relais)
• Processor:Dual core ARM, 720 Mhz, 128 MB
• Power inputs: 12V, 24V, 48V DC
• Operating temperature: -10° C to +80° C
• Origin of goods:Made in EU
• HS Code: 8537 10 910
