Specification:

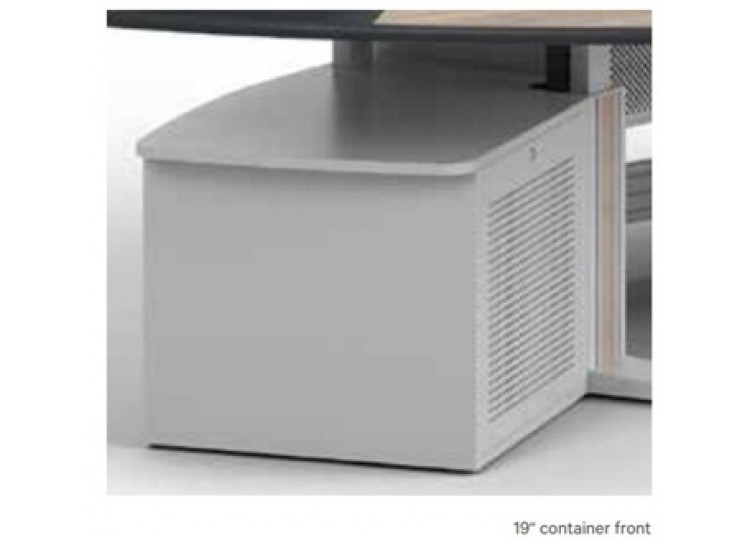

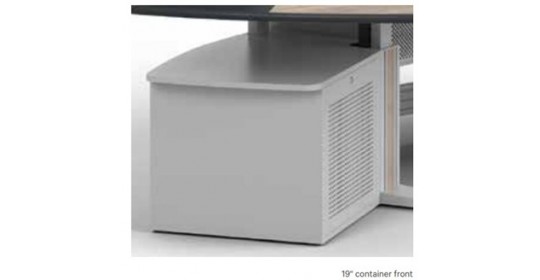

• 19” container for side mounting on the Knürr Ergocon® side panel.
• Removable perforated rear panel at the front and rear with push-lock (optionally also lockable).
• 2 19” installation frames for horizontal and vertical 19” mounting.
• Insertion depth max. 515mm, adjustable in 25mm increments.

Material / Surface:

• Carcase and top panel: three-layer particle board FP/Y E1 version, fire protection class B2, directly coated, sheet steel powder-coated, RAL9006 white aluminium.

Dimensions:

• Width: 750mm.
• Height: 540mm.
• Depth: 640mm.

Supply schedule:

• 1 19” container.
• 2 19” levels for cage nut mounting.
