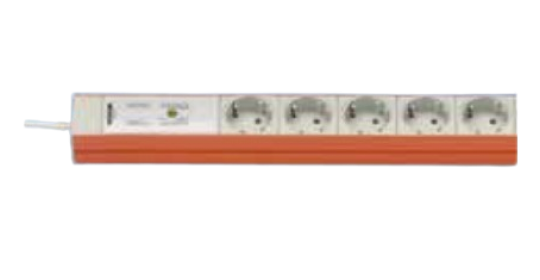

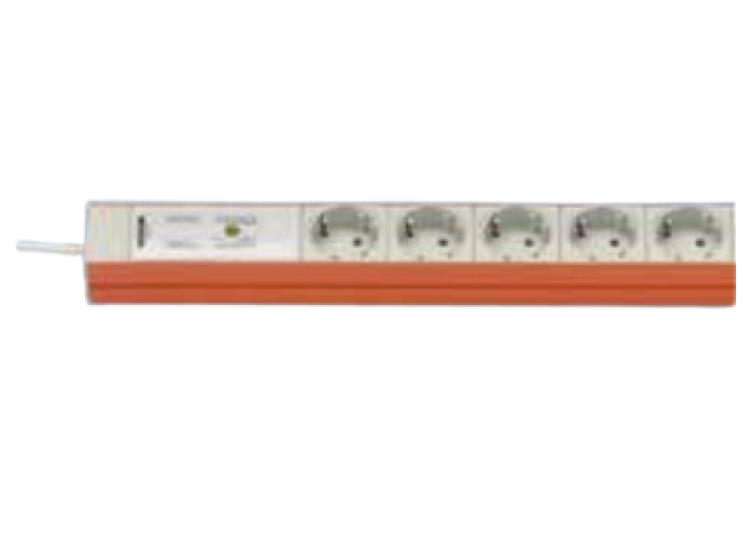

Specification:

• For protection against transient overvoltage from the mains, which, for example, are caused by switching machines on and off.
• When critical overvoltages occur, the connection to the mains is cut off.
• Once the protective conductor has been triggered, the green function display light is not illuminated. Thus, the socket strip can no longer be used.*
• Basic equipment protection is classified as class 3 (category D).
• For optimal protection, class 1 and 2 (categories B and C) protective equipment must be installed in the building.
• 19" installation option (for length 483 mm).
• Socket rotation: 45°.
• Feed cable: H05VV-F 3G 1.5 mm2.
• Molded right angle plug.

Material / Finish:

• Housing: closed sheet steel extrusion, zinc-passivated, powder-coated texture.
• Plastic parts: Vampamid 6 0024 VO (UL94), recyclable.
• Internal conductor: full-length busbars, brass.

Dimensions:

• Distance between sockets: 50 mm.
• Height: 45.5 mm.
• Width of housing: 44.4 mm (= 1 U).
• Power cable 2.5m.

Color combination

 Final digit of order number .1:

• RAL 7035, light-grey.

Final digit of order number .6:

• housing RAL 2003 pastel orange Plastic parts:
• RAL 7035, light-grey.

Technical data:

• Appliance class: Type 3 as per DIN EN 61643-11.
• Requirement class: category D as per VDE 0675-6.
• Mains voltage: 230 VAC.
• Nominal current, max. 16 A.
• Discharge surge current (8/20 s): 10 kA.
• Reaction time: ‹ 25 ns.
• Safety level (at 100 A varistor peak current): L with respect to N: ‹ 800 V, L / N with respect to PE: ‹ 1500 V.

Supply schedule:

• 1 x socket strip.
• 2 x mounting brackets.
