Specification:

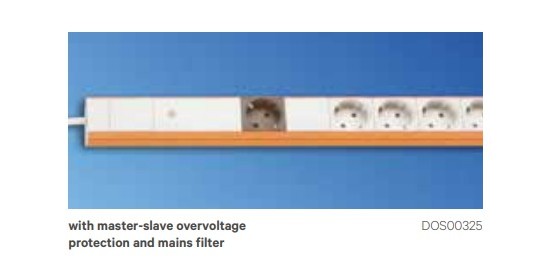

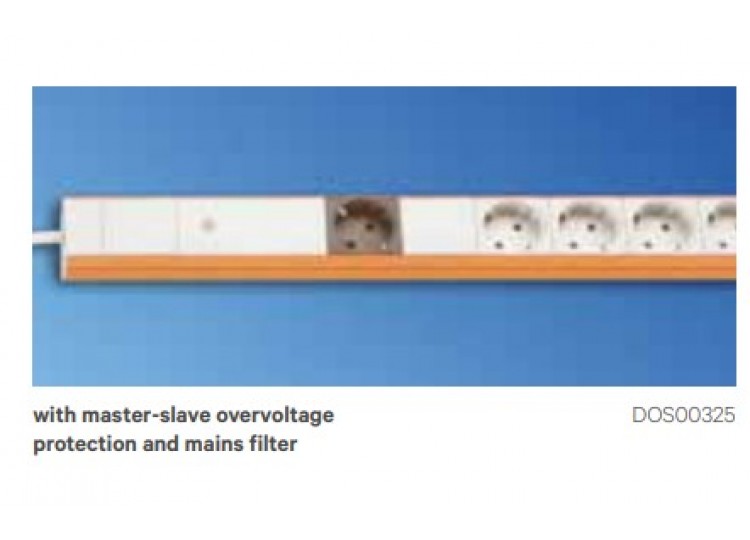

• Master-slave with overvoltage protection and mains filter.
• Automatic consumer switching.
• Combines Master-Slave and Safety Standard functions.
• Socket rotation: 45°.
• Feed cable: H05VV-F 3G 1.5 mm2.
• Molded right angle plug.

Material / Finish:

• Housing: closed sheet steel extrusion, zinc-passivated, powder-coated texture.
• Plastic parts: Vampamid 6 0024 VO (UL94), recyclable.
• Internal conductor: full-length busbars, brass.

Dimensions:

• Distance between sockets: 50 mm.
• Height: 45.5 mm.
• Width of housing: 44.4 mm (= 1 U).
• Feed cable: 2.5 m.

Color combination

Final digit of order number .1:

• RAL 7035, light-grey.

Plastic parts:

• RAL 7035, light-grey.

Technical data:

• With overvoltage protection and mains filter.
• Mains voltage: max. 250 VAC.
• Nominal current: 16 A.
• Requirement class: D (protection as per VDE 0675).
• Surge current resistance (8/20 s wave): Max. 10 kA.
• Protection level (1.5/50 µs wave): ‹ 1500 V (L + N against PE).

Master-slave function:

• Switching-threshold setting range.
• On: 20 - 200 mA (approx. 55 mA on delivery)
• Off: 16 - 160 mA (approx. 44 mA on delivery)
• Switching delay: 550 ms ± 20%.
• Electronic module: 2-pole switching.

Supply schedule:

• 1 x socket strip.
• 2 x mounting brackets.
