Specification:

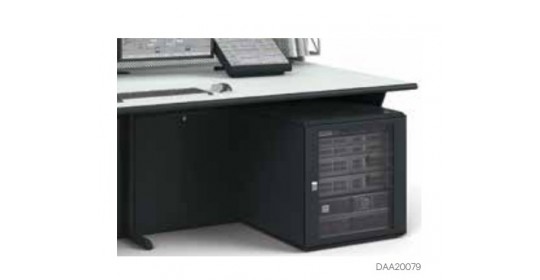

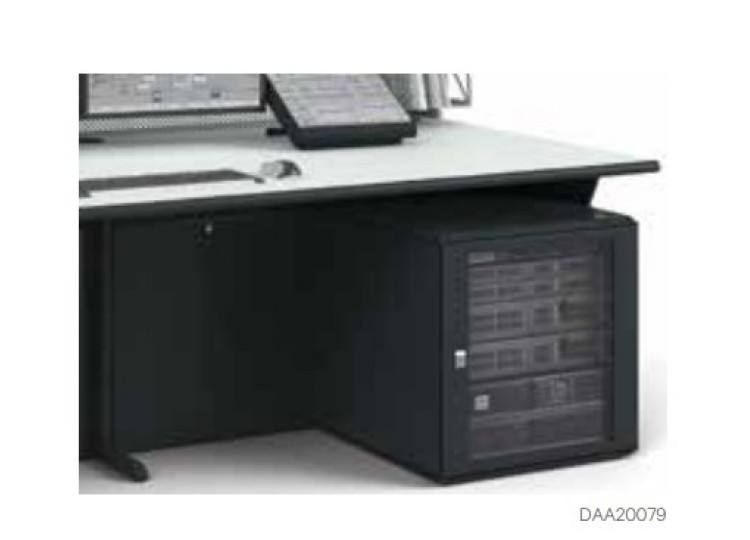

• 19“ rack, 12U installation height.
• With glass front door.
• 19“ mounting hole profiles front and rear for fixation of equipment.
• Rear side open for direct cabling into the consoles technical pedestal.
• Securely attaches to the consoles basic frame.
• For equipment according to IEC 297-3.
• Removable cover panels.

Material:

• Extruded aluminium.
• Corner connector, die-cast aluminium.
• Covers and open shelf, sheet steel, powder-coated texture.
• Front door, sheet steel with single safety glass panel, opening angle, more than 180°.

Finish:

• Basic rack, polished.
• Covers, front and rear doors, RAL7021 Black grey.

Load rating:

• 200 kg (static load).

Installation depth:

• 515 mm.

Supply schedule:

• 1 Basic frame.
• 2 Side panels (closed).
• 1 Front glass door.
• 4 19“ mounting hole profiles.
• 1 Earthing set.
• 4 Levelling feet.
• Mounting material.

How supplied:

• Completely assembled.

Tests:

• Safety in accordance with EN 50298 and EN 60950.
• Protective conductor/earth in accordance with DIN VDE 0701-1.
