Specification:

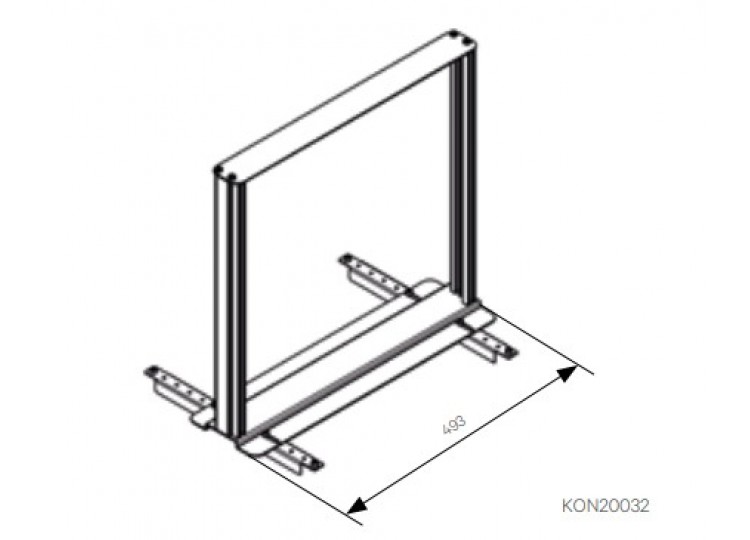

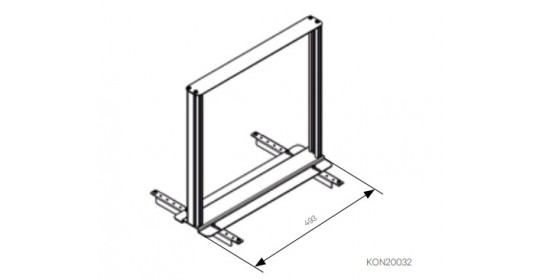

• 19” frame for mounting 19” components and mounting panels.
• 19” frame fixing on technical pedestal base frame via depth braces, making it depthadjustable.
• Equipment installation on the 19” extrusion via T-slots and spring nuts, making it height-adjustable.

Material:

• Sheet steel 19” adapter plate and frame cover, powder-coated texture 19“ extrusion.

Finish:

• Adapter plate, RAL9011 Graphite black.

Supply schedule:

• 1 adapter plate.
• 1 frame cover.
• 2 depth braces.
• 2 19“ extrusions.

How supplied:

• Flat-packed kit.

Note:

• Please order spring nuts and screws separately.
