Specification:

• Can be upgraded at any time.
• Height variable for exact adjustment to operator and hardware.
• Extremely stable construction with integrated cable trough.

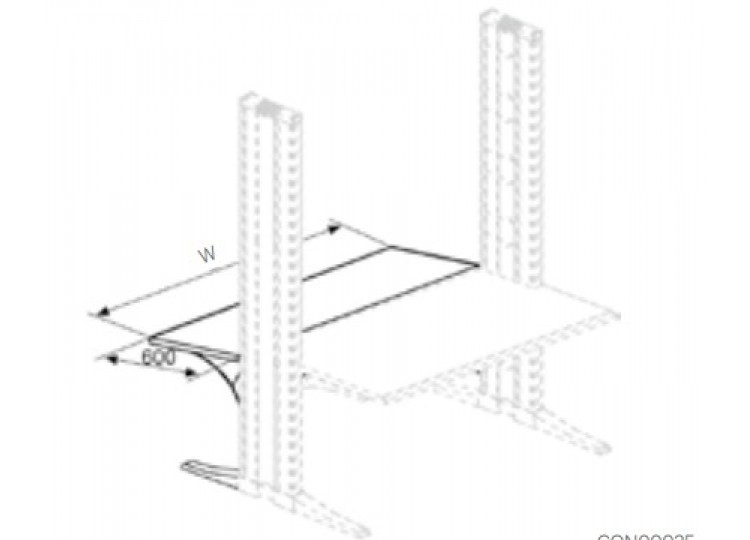

• Useful depth: 590 mm.
• Can be delivered for desk width, 800– 2000 mm.
• Variable tilt adjustment without tools at increments: 0°/7.5°/15°.
• Secure cable management through spacious cable trough and cable ports in the shelf.

Material / Finish:

• Superstructure worktop: three layer particle board, FP/Y E1 version, fire protection class B2.
• Worktop coating: high pressure plastic laminate.
• Support bracket: sheet steel, holed, antistatic powder-coated texture.
• Crosspiece with integrated cable trough: sheet steel, antistatic powder-coated texture.

Colour combination:

Final digit of order number .2:

• Superstructure: light-grey.
• Support bracket: RAL 5003 sapphire blue.
• Metal parts: RAL 7035 light-grey.

Final digit of order number .5:

• Superstructure: beech finish.
• Metal parts and support bracket: RAL 7021 dark-grey.

Load rating:

• 1500 N (static surface load).

Standards:

• DIN 68761 for worktop.
• EN 438 HGS class for high pressure plastic laminate.

Attention!

• With tilted use of monitors and other components set up on the add-on level, secure against sliding by using an antislide restrainer, for example.

Supply schedule:

• 1 Complete add-on level, pre-assembled.
• 2 Foot stabilizers, short.
• Mounting material.

How supplied:

• Flat-packed kit.
