Specifications:

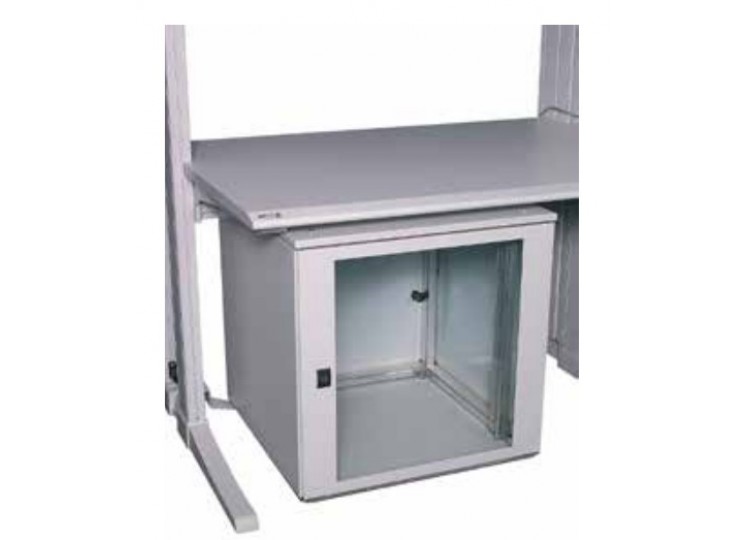

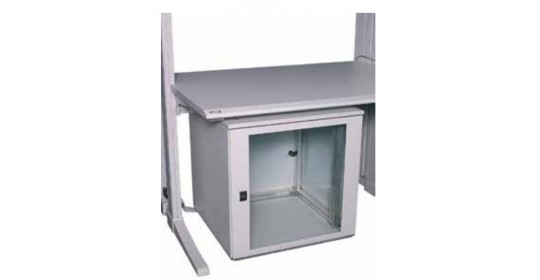

• 19” Pedestal, installation height, 12 HU.
• 19” T-slot extrusion for variable mounting of installation components.
• Shortened bottom on the rear metal door.
• Cover panel with cable port on the rear, top.
• For components in accordance with IEC 297-3.

Material:

• Extruded aluminium.
• Corner connector, die-cast aluminium.
• Covers, powder-coated texture.
• Glass door: sheet steel with single safety glass panel y Metal door: sheet steel.

Model:

• IP 20.

Space solution:

• 82% of the basic surface can be used as space for installation and cable routing.

Finish:

• Basic frame: polished.
• Covers, front and rear doors, RAL 7035 light-grey.

Tests:

• Safety in accordance with EN 50298 and EN 60950.
• Protective conductor/earth in accordance with DIN VDE 0701-1.
• IP test in accordance with DIN EN 60529.

Supply schedule:

• 1 Basic frame.
• 2 Closed side panels.
• 1 Shortened rear door.
• 1 Cover panel with cable routing.
• 2 19” Aluminium vertical extrusions, at the front, with T-slot.
• 1 Earthing set.
• 1 Assembly kit.
• 1 Mounting instructions.

Note:

• 1 Crosspiece is required for installing the Smaract 19” pedestal for depth 900 mm.

How supplied:

• Fully assembled.
