Specifications:

Combi ON-OFF switch with integrated signal light

Optimal user protection with fault current circuit breaker and emergency STOP switch

By activating the emergencySTOP switch, all devices in the superstructure are turned off

In addition to this workstation emergency STOP function, a floating break contact for looping into a room emergency STOP function is also provided.

Technical data:

Input voltage

400 VAC, ± 10%, max. 16A with 400V version

Switch

Combi ON-OFF switch with integrated signal light

Emergency STOP

Workstation emergency STOP built in Room emergency STOP prepared

Room emergency STOP

Floating break contact, switching capacity 230 VAC/6A

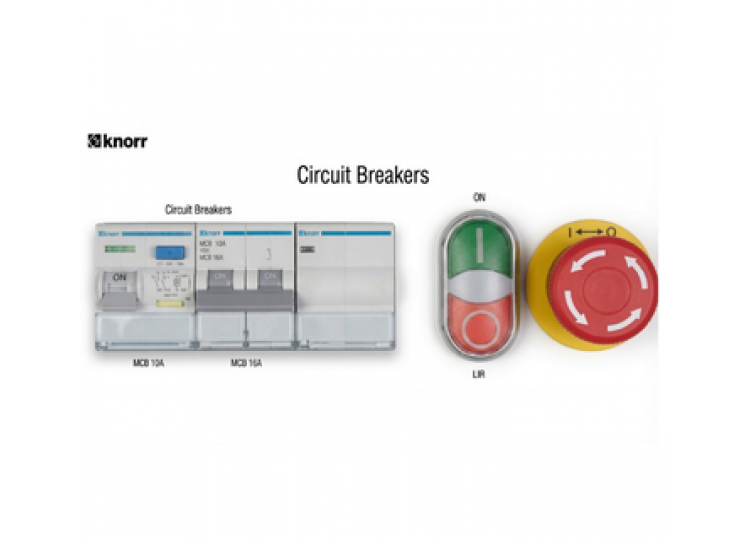

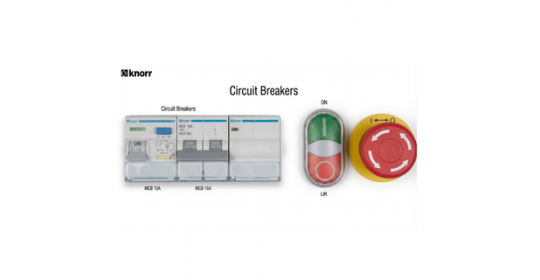

RCCB safety switch

Nom. current 25A, fault current 30 Ma

Mains supply

safety switch

With 230 V: 2-pole nom. current, 16 Awith 400 V: 3 polenom. current 16 A Trip characteristictype C

Material / Finish:

Front panel: aluminium plate, 2.5 mm, painted RAL 7035 light-grey, smooth
