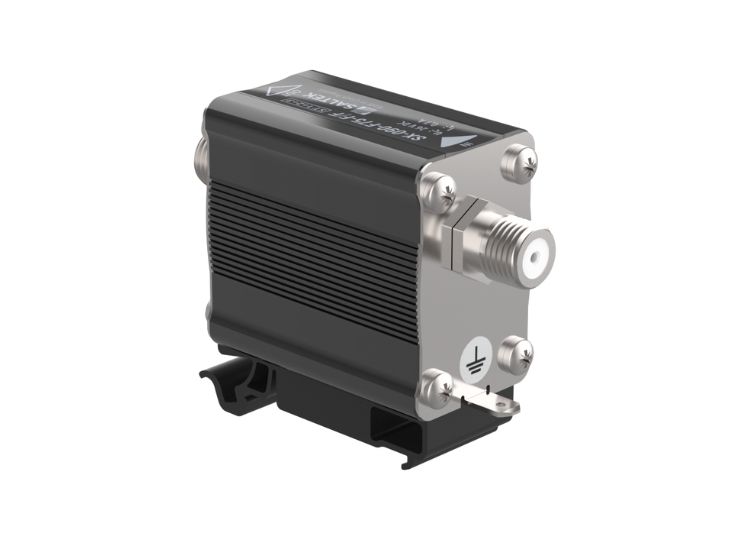

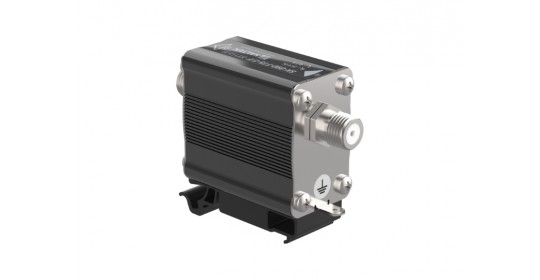

• SX-090 F75 F/F

BNC or F connectors

Fine protection for coaxial inputs of TV systems. Suitable as the 2nd level of surge protection in coordination
with the FX type. Installation at the boundary of LPZ 2 and LPZ 3 zones, directly in front of the equipment.

Parameters

Type of SPD



D1,C2,C3

Location of SPD



ST 2+3

Maximum operating voltage

Uc

29 V DC

Nominal load current

IL

4,000 A

C2 nominal discharge current (8/20 µs) core-PE

In

1,50kA

C3 voltage protection level mode core-PE at 1 kV/µs

Up

80V

Wave impedance

Z

75Ω

Insertion attenuation



1,00 dB

SWR



1,7

Bandwidth - min

f

1,00MHz

Bandwidth - max

f

2150,00 MHz

Connection (input - output)



BNC 50

Degree of protection



IP 20

Range of operating temperatures - min



-40 °C

Range of operating temperatures - max



-80 °C

Mounting



DIN rail 35 mm

According to standard



EN 61643-21+A1,A2:2013, EN IEC 61643-21+A1,A2:2012

ETIM Class



EC001466
