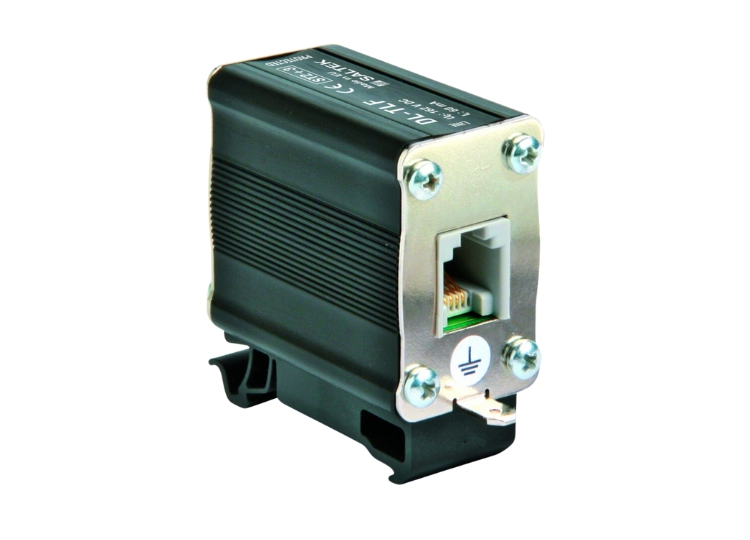

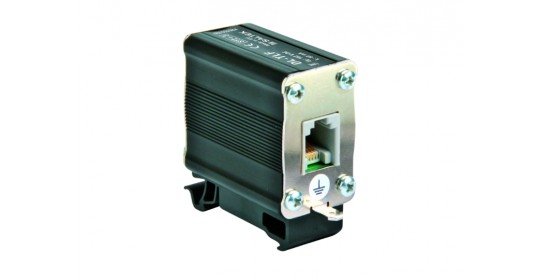

• DL-TLF

RJ12 connectors

Combination of coarse and fine protection of one pair of analogue lines of telecommunication equipment, incl. ADSL.

Parameters

Type of SPD



C2,C3

Location of SPD



ST 2+3

Maximum operating voltage

Uc

114 V AC

Maximum operating voltage

Uc

162 V AC

Nominal load current

IL

0,060 A

C2 nominal discharge current (8/20 µs) core-core

In

2,50Ka

C2 voltage protection level mode core-core at In

Up

260 V

C2 voltage protection level mode core-PE at In

Up

300 V

C3 voltage protection level mode core-core at 1 kV/µs

Up

240 V

C3 voltage protection level mode core-PE at 1 kV/µs

Up

400 V

Response time core-core

ta

1 ns

Response time COM-PE

ta

100 ns

Serial resistance per core

R

6,80Ω

Treshold frequency core-core

f

14,00MHz

Connection (input - output)



RJ 45/RJ 45

Degree of protection



IP 20

Range of operating temperatures - min



-40°C

Range of operating temperatures - max



80°C

Mounting



DIN rail 35 mm

According to standard



EN 61643-21+A1,A2:2013, EN IEC 61643-21+A1,A2:2012

ETIM Class



EC001625
