- CAT6 inline coupler
- UTP RJ45
- Jack-to-Jack type
- Horizontal narrow (slim width = 16.3mm)
Specifications
- RoHS
- Meets CAT5e EIA/TIA 568B Standard
- Meets CAT6 EIA/TIA 568B Standard
- Jack Insertion Cycle: Over 2000 Cycles
- Operation Temperature: -40 ~ +70 Degree Celsius
- Body: Fireproof ABS UL-94V0
- PCB: FR-4 / UL-94V0
- Jack: 8P8C 50 micro inches gold plated
- Insulation Resistance: 500M ohms (min.)
- Contact Resistance: 20m ohms (max.)
- Current Rating: 1.5 Amps.
- DC Resistance: 0.1 ohms (max.)
- Withstanding Voltage: 1000 VAC RMS @ 60Hz/1min.

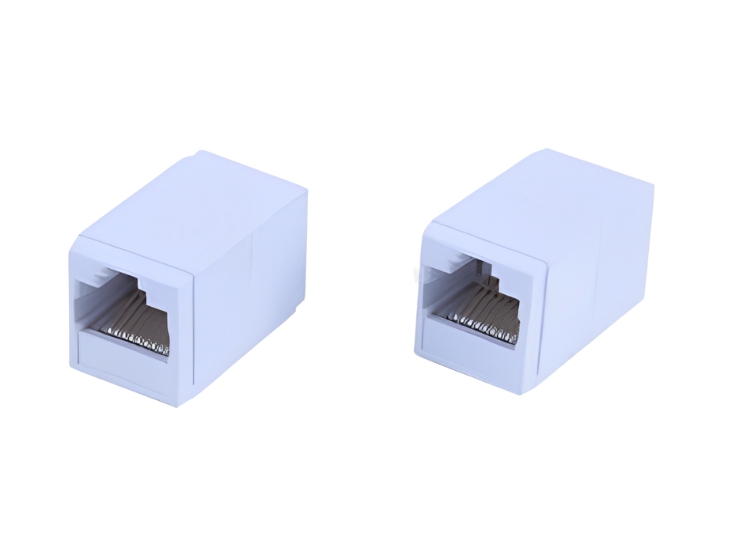

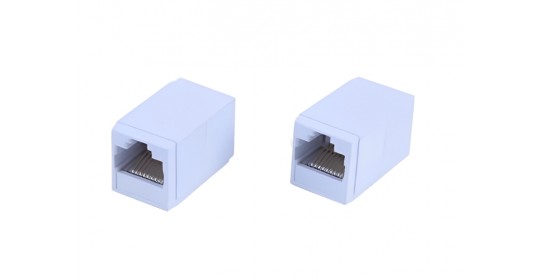

Coupler Inline RJ45F To RJ45F CAT6
- Brand: EPN - Taiwan Categories Copper Products
- Product Code: 145.275.00116
- MPN: 145.275.00116
AED6.50
